The high-pressure pump is one of the vital components in the RO system, playing a key role in providing sufficient pressure to push water through the reverse osmosis membrane. This type of pump increases the pressure of water, allowing water molecules to overcome the resistance of the reverse osmosis membrane, thereby achieving an effective filtration and purification process.

Product details

3ZH75

Stroke Length (mm)：75

Crankcase Oil Capacity (L)：17.2

Pump Weight (KG)：420

Recommended SPM for Continuous Duty：≤400

Standard Gear Ratio：3.75

Optional Gear Ratio：3.16

High Pressure Pump for Cleaning

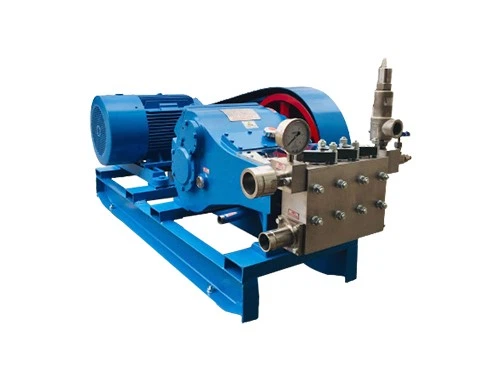

High Pressure Pump for Cleaning 3ZH75

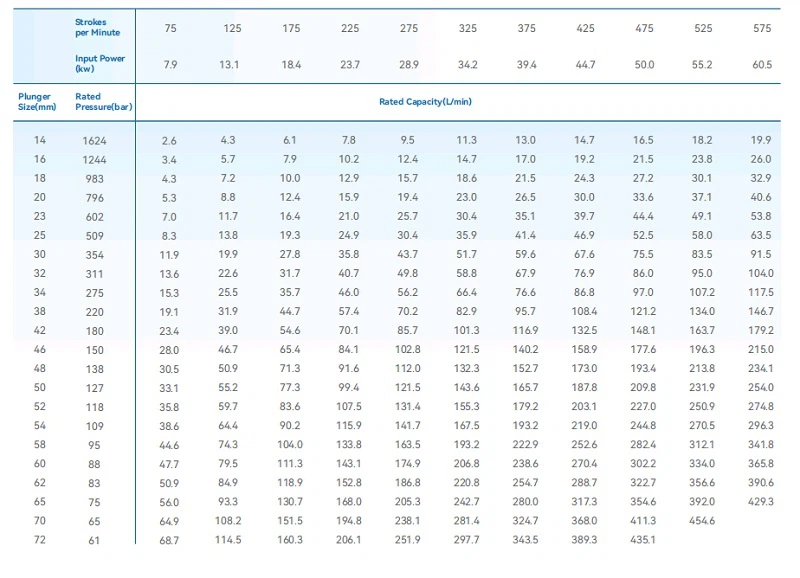

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3ZH75
	Pump Number: 202007104
	Pump Type: 3ZH75
	Pressure (bar): 55
	Flow (L/min): 200.4
	Motor Power (KW): 30
	Medium: Brine
	Medium Temperature ℃: Normal Temperature
	Valve Accessory Configuration: 1.Safety Valve A22Y-63RL-DN32 2.Pressure Relief Valve HY-JF2-00

Working principle

A high-pressure pump uses an electric motor or other power source to push water through the reverse osmosis membrane. This pump generates high pressure, allowing water molecules to pass through the reverse osmosis membrane while isolating impurities and contaminants dissolved in the water.

Feature

1. Pressure control: The high-pressure pump can accurately control the pressure of the output water to ensure a constant pressure level throughout the filtration process. This helps improve the efficiency and performance of the RO system.

2. Energy saving: Some advanced high-pressure pump designs adopt energy-saving technology, which can effectively reduce energy consumption. This is important to reduce the operating costs and environmental impact of RO systems.

3. Durability: High-pressure pumps are usually made of durable materials that can withstand high pressure and long-term operation. This ensures the stability and reliability of the RO system.

4. Maintenance: Regular maintenance and upkeep of the high-pressure pump is the key to ensuring long-term effective operation of the RO system. Cleaning the pump and replacing worn parts can extend the life of the pump and maintain system performance.

5. Safety: The high-pressure pump is designed with safety factors in mind to ensure that no leakage or other accidents occur during operation, thus protecting the safety of users and the environment.
