High Pressure Portable Fire Fighting Pump

High Pressure Portable Fire Fighting Pump

3ZX90
The high pressure portable fire fighting pump is an essential tool for firefighters and emergency responders everywhere.
Send Inquiry
Description

The high pressure portable fire fighting pump is an essential tool for firefighters and emergency responders everywhere. This powerful device can quickly deliver water to extinguish fires in remote areas, making it a valuable resource in areas where traditional firefighting infrastructure is lacking or difficult to reach.



Product details



3ZX90
Stroke Length (mm):90
Crankcase Oil Capacity (L):18.8
Pump Weight (KG):535
Recommended SPM for Continuous Duty:≤370
Standard Gear Ratio:4.00
Optional Gear Ratio:3.16

High Pressure Portable Fire Fighting Pump

High Pressure Portable Fire Fighting Pump 3ZX90

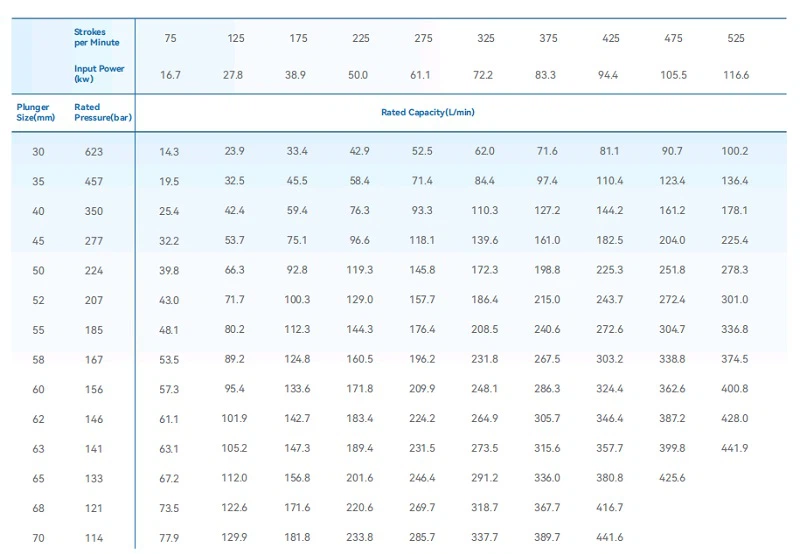

Product Parameters



Please visit our official website to view the complete range of parameters and specifications:https://www.hygyb.com/en/prolist/20

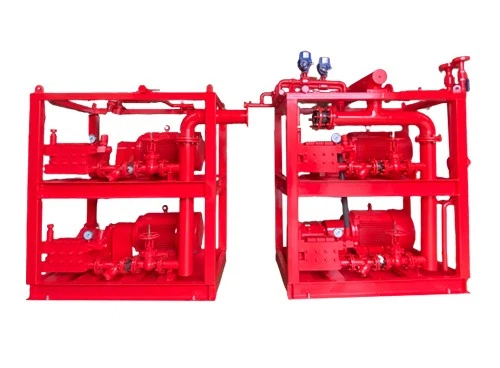

3ZX90-Case 1

product-500-368

Pump Number: 20201162

Pump Type: 3ZX90

Pressure (bar): 120bar

Flow Rate (L/min): 393L/min

Motor Power (KW): 110KW

Medium: Sea Water

Medium Temperature ℃: Normal Temperature

Valve Accessories Configuration: 1.Safety Valve HY-15L-00

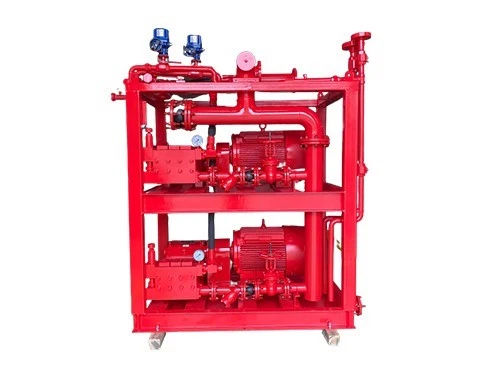

3ZX90-Case 2

product-500-368

Pump Number: 20201162-65

Pump Type: 3ZX90

Pressure (bar): 120bar

Flow (L/min): 393L/min

Motor Power (KW): 100KW

Medium: Seawater

Medium Temperature ℃: Normal Temperature

Valve Accessory Configuration: 1.Safety Valve HY-15L-00



Feature



1. Portability: High pressure portable fire fighting pumps are usually compact in design and easy to carry and operate. This allows them to be deployed quickly when needed, without the need for large equipment or complex installation processes.

2. High Pressure Capability: These pumps are often capable of delivering high pressure water flow, which helps to extinguish fires quickly. The high voltage capability makes them effective against different types of fires, including oil fires, electrical fires, etc.

3. Versatility: High pressure portable fire fighting pumps usually have multiple functions, such as adjustable water flow, spray mode selection, etc., to adapt to the needs of different fire scenarios.

4. Durability: These pumps are usually made of durable materials and are capable of continuous operation in harsh conditions. They are regularly subjected to rigorous testing to ensure reliable operation during critical moments.

5. Easy to maintain: high pressure portable fire fighting pumps are usually simple in design and easy to maintain. This means that users can easily perform routine maintenance and repairs, ensuring that the equipment is always in optimal working condition.



Processing Equipment
Oil-Water Separator
Oil-Water Separator
CNC Horizontal Boring and Milling Machining Center UBM-11020IS
CNC Horizontal Boring and Milling Machining Center UBM-11020IS
CNC Lathe
CNC Lathe
CNC Vertical Machining Center V-11L-2L
CNC Vertical Machining Center V-11L-2L
Gantry Machining Center FV2215
Gantry Machining Center FV2215
Gantry Machining Center UDM2216
Gantry Machining Center UDM2216
