High Pressure Fire Pump is a critical firefighting equipment used to provide high-pressure water flow during fire emergencies to extinguish fires or control fires. These pumps, typically driven by internal combustion or electric motors, are capable of pulling water from a source and piped to the fire site.

Product details

3DP35

Stroke Length (mm)：35

Crankcase Oil Capacity (L)：2.1

Pump Weight (KG)：107

Recommended SPM for Continuous Duty：≤480

High Pressure Fire Pump

High Pressure Fire Pump 3DP35

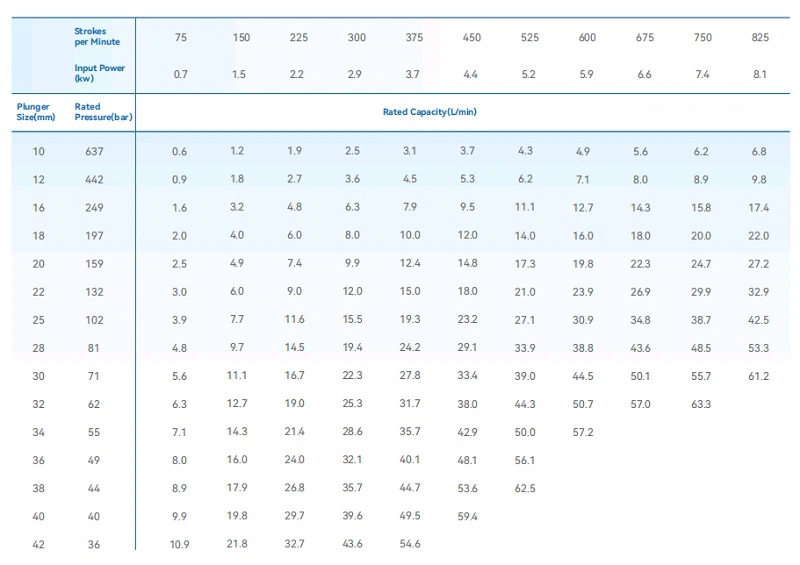

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3DP35-Case 1
	Pump Number: 20170330
	Pump Type: 3DP35
	Pressure (bar): 20
	Flow Rate (L/min): 13
	Motor Power (KW): 1.1
	Medium: Water
	Medium Temperature ℃: Normal Temperature
	Valve Accessories Configuration: Complete Set of Pipelines
3DP35-Case 2
	Pump Number: 20160412
	Pump Type: 3DP35
	Pressure (bar): 20
	Flow Rate (L/min): 48
	Motor Power (KW): 5.5
	Medium: Clean Water
	Medium Temperature ℃: Normal Temperature
	Valve Accessories Configuration: Relief Valve HY-Y15J-00

Feature

1. High-pressure water flow: The high-pressure fire pump can generate strong water flow pressure, allowing water to effectively reach the fire point and extinguish the fire.

2. Quick response: These pumps are usually designed to respond quickly to fires to minimize damage caused by fires.

3. Multiple driving methods: The high pressure fire pump can be driven by an internal combustion engine or an electric motor, ensuring reliable operation under various circumstances.

4. Durability: These pumps are usually made of durable materials to ensure normal operation under harsh conditions.

5. Automated control: Some high pressure fire pumps are equipped with automated control systems that can automatically start and stop as needed, improving efficiency and reducing human intervention.

6. Portability: Some models are designed to be portable, allowing for quick deployment to where needed.

7. Versatility: In addition to being used for fire extinguishing, high pressure fire pumps can also be used for scrubbing, cleaning and other hydraulic applications.

Advantage

1. Reliability. These pumps are designed with durability in mind and are built to withstand rigorous use in harsh conditions. They are equipped with advanced features such as high-performance engines and sturdy construction materials to ensure they operate at peak efficiency for long periods of time.

2. High efficiency. They can deliver large amounts of water in a short period of time, which is critical in emergency situations where time is of the essence. With high flow rates and powerful pressure output, they can quickly extinguish flames and prevent damage to property and life.

3. Versatile and can be used in a wide range of applications. They can be used to supply water to high-rise buildings, industrial complexes and other large structures. They can also be used in rural areas with limited water supplies, making them an important part of firefighting operations.
