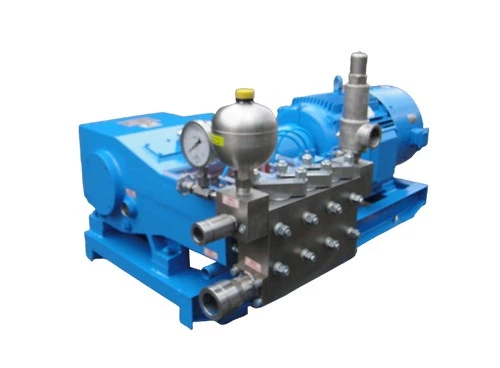

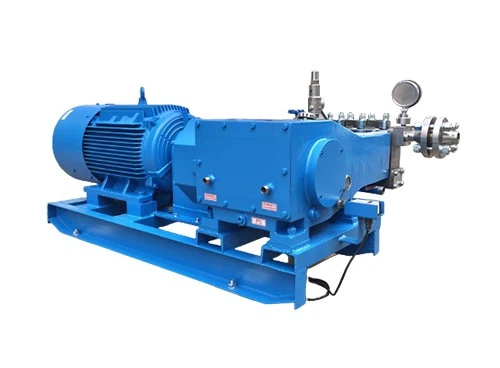

The high-pressure plunger pump is a key piece of equipment used in reverse osmosis systems, which plays an important role in pushing water through a semipermeable membrane to remove impurities and contaminants. This type of pump is usually driven by an electric motor and uses a plunger to create a high-pressure flow of water. They are engineered to withstand high pressure, ensuring water passes through the reverse osmosis membrane with sufficient force, allowing for an efficient process of filtration and water purification.
Product details
Product Parameters
Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20
|
3ZX60-Case 1 |
|
|
|
Pump Number: 20200667 |
|
Pump Type: 3ZX60 |
|
|
Pressure (bar): 75 |
|
|
Flow (L/min): 126 |
|
|
Motor Power (KW): 22 |
|
|
Medium: Salt Containing Wastewater Sodium Chloride 6% |
|
|
Medium Temperature ℃: Not Exceeding 70°C |
|
|
Valve Accessory Configuration: 1.Safety Valve A22Y-100RL DN25 2.Pressure Relief Valve HY-JF2-00 |
|
|
3ZX60-Case 2 |
|
|
|
Pump Number: 20210462 |
|
Pump Type: 3ZX60 |
|
|
Pressure (bar): 62 |
|
|
Flow (L/min): 126 |
|
|
Motor Power (KW): 18.5 |
|
|
Medium: Garbage Leachate |
|
|
Medium Temperature ℃: Normal Temperature |
|
|
Valve Accessory Configuration: 1.Safety Valve A22Y-100RL DN32 |
|
Working principle
The working principle of a high-pressure plunger pump is to push water onto the reverse osmosis membrane through the reciprocating motion of the plunger, thereby generating sufficient pressure to reverse osmosis water molecules. This process is critical because it ensures that water passes through the membrane with sufficient speed and pressure to remove impurities and contaminants. High-pressure pumps often require precise engineering to ensure their stability and durability.
Advantage
1. Can handle the demanding flow rates required for efficient water purification. These pumps are often rated for flow rates up to 100 gallons per minute or more, making them an ideal solution for large industrial and commercial water treatment applications.
2. Very reliable and low maintenance cost. These pumps are built to last, with rugged construction and durable materials to withstand the harsh conditions of industrial water treatment facilities.
3. Highly energy efficient. Because these pumps are designed to operate at high pressure, they require less power to achieve the same flow rates as other types of pumps. This means you save on energy costs in the long run, making it a smart investment for any business.
