Stainless Steel Chemical Pump is a pumping device specially designed to handle chemical liquids. This pump is usually made of stainless steel, which is corrosion-resistant and high-temperature resistant, and is suitable for handling a variety of corrosive liquids such as acids, alkalis, solvents, etc. The working principle is to pump liquids from one place to another through rotating mechanical parts such as impellers or plungers to achieve liquid transportation. They are generally widely used in chemical, petroleum, pharmaceutical, food processing and other fields.

Product details

3ZX100

Stroke Length (mm)：100

Crankcase Oil Capacity (L)：34.8

Pump Weight (KG)：625

Recommended SPM for Continuous Duty：≤350

Standard Gear Ratio：4.45

Optional Gear Ratio：3.83

Optional Gear Ratio：3.04

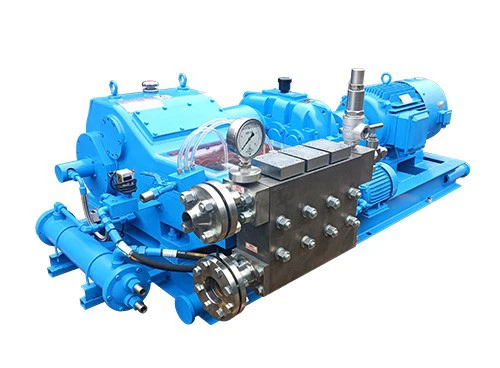

Stainless Steel Chemical Pump

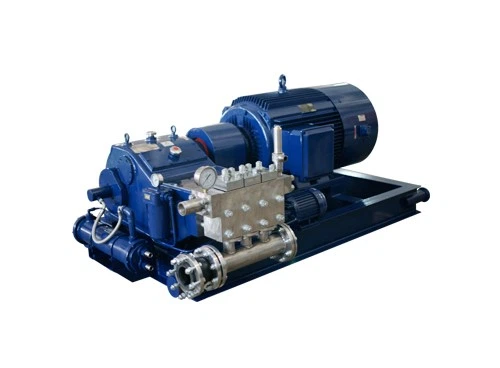

Stainless Steel Chemical Pump 3ZX100

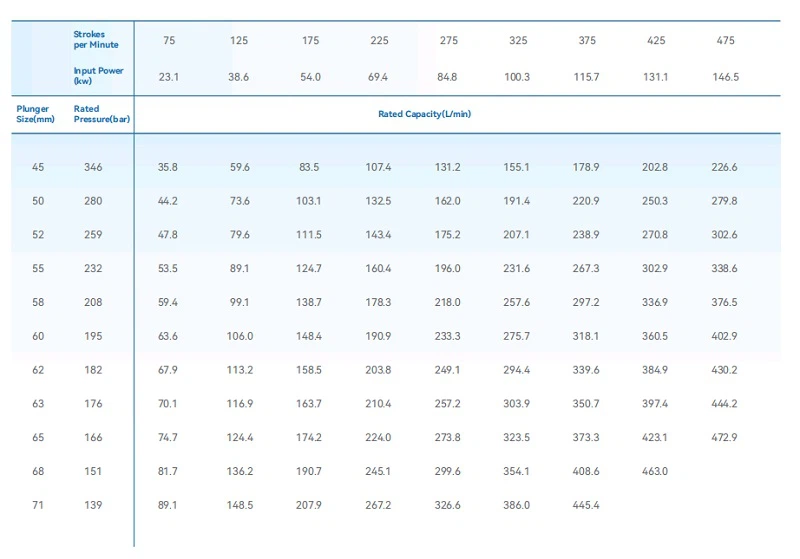

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3ZX100-Case 1
	Pump number: HY20221006
	Pump type: 3ZX100
	Pressure (bar): 75bar
	Flow rate (L/min): 167L/min
	Motor power (KW): 30KW
	Medium: high-salt wastewater
	Medium temperature ℃: ≤65℃, with floc
	Valve accessories configuration: 1. Safety valve A22Y-100N DN25 2. Pressure relief valve HY-JF2-00
3ZX100-Case 2
	Pump number: 20170325
	Pump type: 3ZX100
	Pressure (bar): 180bar
	Flow rate (L/min): 250.5L/min
	Motor power (KW): 110KW
	Medium: water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: 1. Safety valve A320.500.00 2. Horizontal self-priming pump 50CWZ-6 3. Variable frequency motor

Product composition

Stainless Steel Chemical Pumps are often designed with critical components such as the pump body, impeller, bearings, and seals. The pump body and impeller are typically constructed of stainless steel to provide corrosion resistance and endurance. The impeller design successfully performs fluid suction and delivery operations. The design of the bearings and sealing components ensures that the pump operates smoothly and without leakage.

Advantage

1. Corrosion resistance: Stainless steel has excellent corrosion resistance and is suitable for conveying corrosive chemicals, acids, alkalis and other corrosive substances.
2. Durability: Stainless steel is known for its high strength and ability to withstand harsh environments, ensuring a long service life.
3. Hygienic performance: Stainless steel is easy to clean.
4. High temperature resistance: Stainless steel can withstand a wide range of temperatures and is suitable for both hot and cold chemicals.
5. Non-reactive: Stainless steel does not react with most chemicals, reducing the risk of contamination of the pumped liquid.

Application

Stainless steel chemical pump has a wide range of applications, including chemical, pharmaceutical, food processing, electronics and other industries. Due to the corrosion resistance of stainless steel, this type of pump is particularly suitable for handling corrosive liquids or high-temperature and high-pressure liquids.
