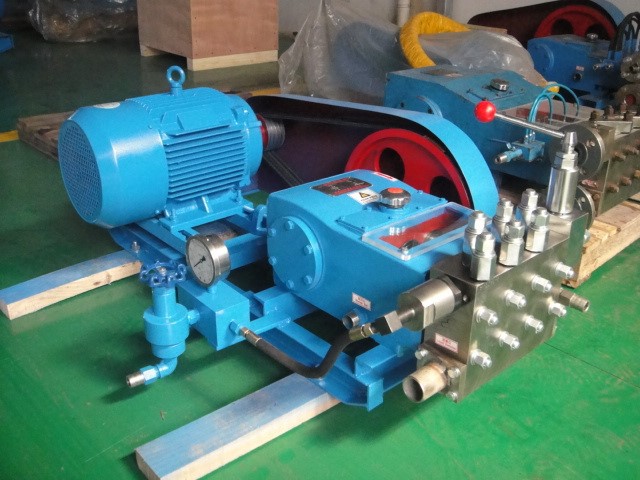

High Pressure Fire Fighting Water Pumps

Designed for efficient firefighting operations, these high pressure fire fighting water pumps can provide precise high pressure water flow in critical situations. They are usually driven by diesel or gasoline engines, providing high pressure water flow through efficient pumping systems. With compact design and powerful motors, they ensure reliable performance in various firefighting scenarios. These pumps are usually designed to handle various types of liquids, including clean water, foam and chemical liquids. These water pumps are often used in industrial, commercial and firefighting applications to ensure timely and effective control of fires.

· Detailed Parameters:

Plunger Diameter: 15mm

Pump Speed: 396rpm

Theoretical Flow Rate: 8.4L/min

Effective Power: 10.12KW

· Drive Power and Method:

Fixed base with belt-driven transmission.

Powered by a standard 11KW, 4-pole motor.

· Media Contact Materials:

Hydraulic End Cylinder: 45 steel for durability.

Valve Assembly: 2Cr13 stainless steel for corrosion resistance.

Plunger: 45 steel with Ni60 coating for wear resistance.

The high pressure fire fighting water pumps operates through a reciprocating plunger mechanism, creating high-pressure water flow driven by a belt system and an 11KW motor for continuous and reliable operation.

1. High power output: These water pumps usually have a strong power output to ensure that they can provide enough water pressure to extinguish large fires.
2. Durability: Durable design, able to operate for a long time in harsh environments, ensuring reliable operation in emergency situations.
3. Portability: Some models are designed to be lightweight and compact, easy to carry and move, so as to quickly respond to fire incidents.
4. Versatility: With multiple operating modes and functions, water flow and pressure can be adjusted as needed.
5. Automated control: Equipped with an automated control system, it can monitor and adjust water flow, improve efficiency and reduce the workload of operators.

· High Efficiency: Delivers 8.4L/min, making it suitable for targeted firefighting tasks.
· Durable Construction: Built from high-quality 45 steel and 2Cr13 stainless steel to withstand challenging environments.
· Reliable Power: Equipped with a powerful 11KW motor for consistent high-pressure output.
· Low Maintenance: Ni60-coated plunger ensures longevity and reduces wear.

· Commercial Building Fire Safety: Ideal for use in commercial fire suppression systems.
· Industrial Firefighting: Suitable for industrial environments where precise, high-pressure water flow is needed.
· Emergency Fire Response: Compact and reliable for firefighting teams during rapid-response scenarios.
· Construction Site Fire Protection: Effective in providing fire protection on large-scale construction sites.

Factory Appearance

Storeroom

Storeroom

Storeroom

Test Center

Test Center
