Stainless Steel High Pressure Pumps are powerful and reliable devices designed to efficiently transfer fluids at high pressures. Constructed from high-quality stainless steel materials, these pumps are known for their durability, corrosion resistance and ability to withstand harsh working conditions.

Product Details

3ZW100

Stroke Length (mm)：100

Crankcase Oil Capacity (L)：49

Pump Weight (KG)：1560

Recommended SPM for Continuous Duty：≤350

Standard Gear Ratio：4.28

Optional Gear Ratio：3.70

Optional Gear Ratio：3.27

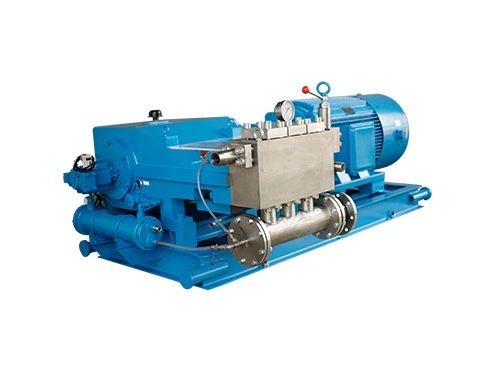

Stainless Steel High Pressure Pumps

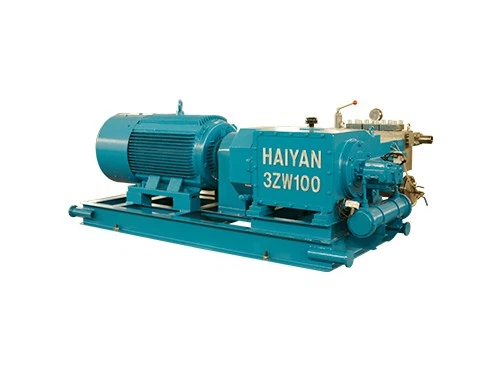

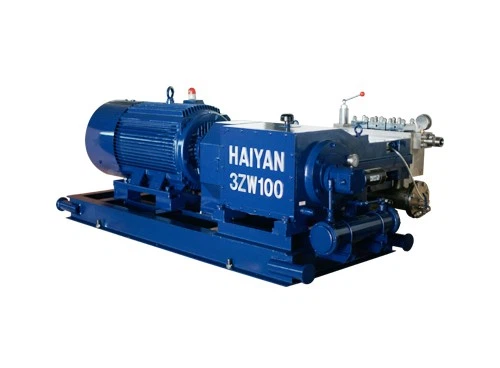

Stainless Steel High Pressure Pumps 3ZW100

Product composition

The design of Stainless Steel High Pressure Pumps typically includes a sturdy pump body, impeller and motor. The pump body is engineered to withstand high pressures without deformation or leakage, ensuring long-term performance and reliability. The impeller is designed to move fluid through the pump efficiently, while the motor provides the power needed to drive the pump.

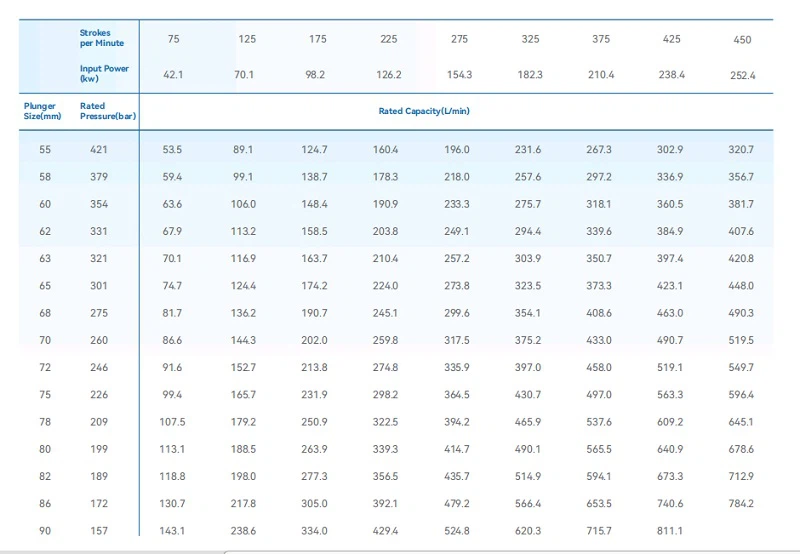

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3ZW100-Case 1
	Pump number: 20180116
	Pump type: 3ZW100
	Pressure (bar): 120
	Flow rate (L/min): 650
	Motor power (KW): 160
	Medium: water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: 1. Relief valve HY-Y35K-00
3ZW100-Case 2
	Pump number: 20170917
	Pump type: 3ZW100
	Pressure (bar): 160
	Flow rate (L/min): 550
	Motor power (KW): 160
	Medium: water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: relief valve HY-Y35K-00
3ZW100-Case 3
	Pump number: 20170360
	Pump type: 3ZW100
	Pressure: 140bar
	Flow rate: 550L/min
	Motor power: 160KW
	Medium: clean water
	Medium temperature: normal temperature
	Valve accessories configuration: 1. Relief valve HY-Y35K-00

Advantage

1. Durability. Stainless steel is a highly durable and corrosion-resistant material, which means these pumps can withstand even the harshest operating conditions. They're also built to last, with many models featuring heavy-duty construction and durable components.

2. Efficiency. Stainless Steel High Pressure Pumps are designed to operate at high efficiency, meaning they can help reduce energy costs and improve overall system performance. They are also extremely reliable, with many models equipped with advanced monitoring and control systems to ensure optimal performance at all times.
