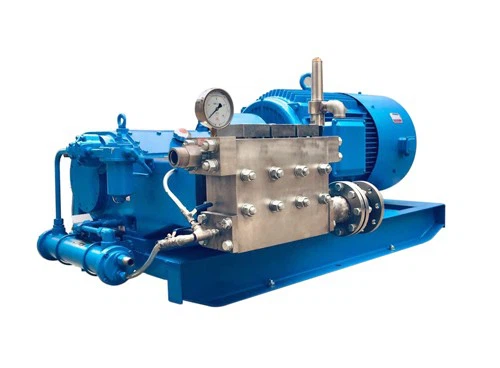

Powerful High Pressure Plunger Pumps are a powerful and essential tool in many industries. These pumps are designed to transport water or other liquids at high pressure, making them a valuable asset in a wide range of applications. From cleaning tough stains to powering hydraulic machinery, these pumps are reliable, efficient and dependable.

Product Details

3ZX90

Stroke Length (mm)：90

Crankcase Oil Capacity (L)：18.8

Pump Weight (KG)：535

Recommended SPM for Continuous Duty：≤370

Standard Gear Ratio：4.00

Optional Gear Ratio：3.16

Powerful High Pressure Plunger Pumps

Powerful High Pressure Plunger Pumps 3ZX90

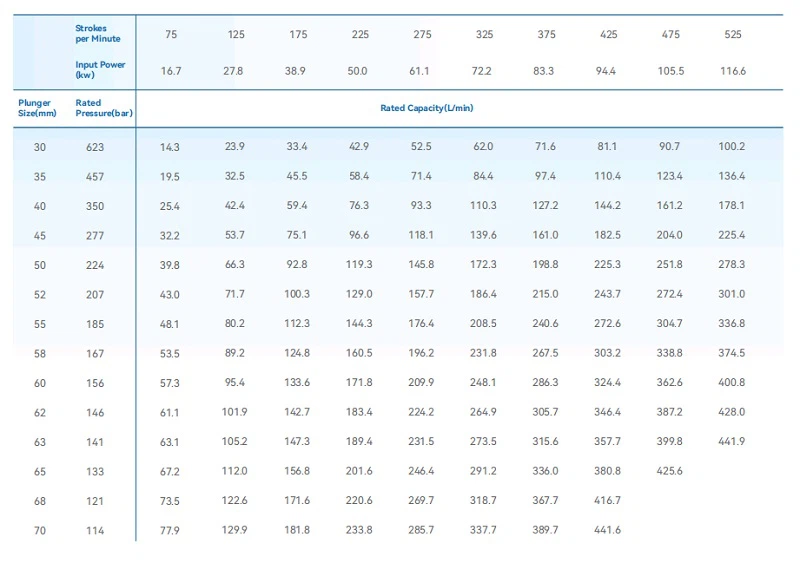

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3ZX90-Case 1
	Pump number: 20180408
	Pump type: 3ZX90A
	Pressure (bar): 110
	Flow rate (L/min): 340
	Motor power (KW): 75
	Medium: water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: 1. Safety valve A 320.500.00
3ZX90-Case 2
	Pump number: 20180408
	Pump type: 3ZX90A
	Pressure (bar): 110
	Flow rate (L/min): 340
	Motor power (KW): 75
	Medium: water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: 1. Safety valve A 320.500.00
3ZX90-Case 3
	Pump number: 20180408
	Pump type: 3ZX90A
	Pressure (bar): 110
	Flow rate (L/min): 340
	Motor power (KW): 75
	Medium: water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: 1. Safety valve A 320.500.00

Feature

High-pressure plunger pump designs typically include durable housings, high-quality seals, and precision-engineered components to ensure efficient operation and minimal maintenance requirements. They are often equipped with safety features to protect against overheating and overvoltage conditions, thereby increasing operational safety.

Advantage

1. Versatility. They can be used in a variety of environments from construction sites to factories and everything in between. They are typically used in cleaning applications such as pressure washing buildings or cleaning vehicles, but can also be used in industrial applications such as chemical processing, oil and gas refining, and water treatment.

2. Due to their high pressure capabilities, these pumps provide a powerful and efficient solution for many situations. They power hydraulic systems to move heavy machinery and lift loads, which is critical in construction and manufacturing. Additionally, they are used in oil drilling applications to inject fluids into wells, which helps keep wells operating efficiently.

3. Durability and reliability. They are designed to withstand the harshest conditions and maintain consistent performance over time. They have a long service life, require minimal maintenance, and are easy to operate.
