High Pressure Hydro Jet Pump is a powerful hydraulic pump commonly used in cleaning and drainage applications. This type of pump utilizes a high-pressure stream of water to clean a variety of surfaces and pipes, typically removing dirt, paint, coatings, and other surface contaminants. Its working principle is to eject water through strong water pressure to generate high-speed water flow to clean the target surface.

Product details

3ZH130

Stroke Length (mm)：130

Crankcase Oil Capacity (L)：72.6

Pump Weight (KG)：941

Recommended SPM for Continuous Duty：≤302

Standard Gear Ratio：4.53

Optional Gear Ratio：3.90

Optional Gear Ratio：3.26

High Pressure Hydro Jet Pump

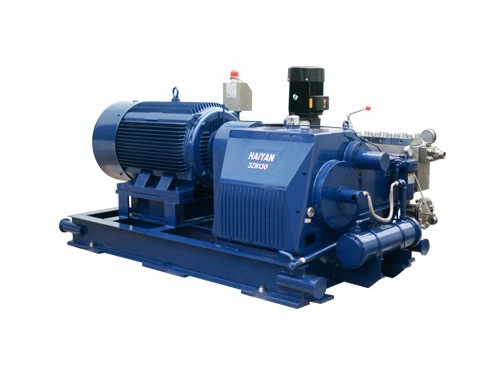

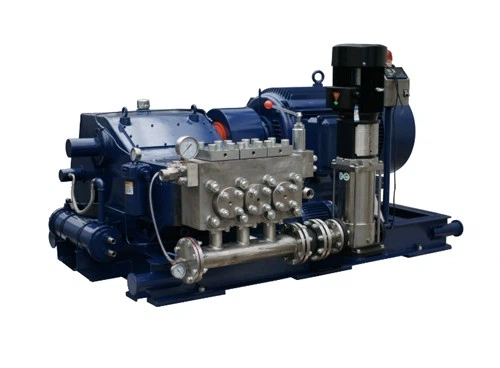

High Pressure Hydro Jet Pump 3ZH130

Product composition

This type of pump usually consists of a water tank, a pump, a high-pressure hose and a nozzle. The water tank is usually used to store detergent or water, the pump is responsible for pressurizing the water flow, and the high-pressure hose delivers high-pressure water to the nozzle, which controls the direction and intensity of the water flow. Users can control the cleaning effect by adjusting the pressure of the pump to adapt it to different types of cleaning tasks.

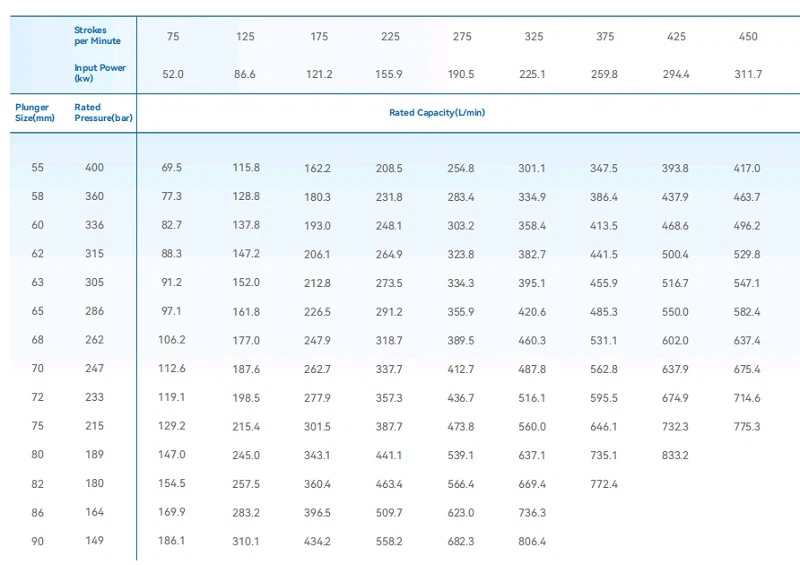

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3ZH130-Case 1
	Pump number: 20150380
	Pump type: 3ZH130
	Pressure (bar): 180
	Flow rate (L/min): 605
	Motor power (KW): 200
	Medium: clean water
	Medium temperature ℃: normal temperature
	Valve accessories: pressure regulating overflow safety valve HY-Y35K-00 booster pump CDLF32-40
3ZH130-Case 2
	Pump number: 20160907
	Pump type: 3ZH130
	Pressure (bar): 180
	Flow rate (L/min): 605
	Motor power (KW): 200
	Medium: clean water
	Medium temperature ℃: normal temperature
	Valve accessories configuration: 1. Safety relief valve HY-Y35K-00 2. Add pump CDLF 32-40

Feature

High efficiency and energy saving: Using hydraulic energy to generate high-pressure water flow without external electricity or fuel, it is energy-saving and environmentally friendly.

Versatility: Can be used in industrial and civil fields such as cleaning, rinsing, cutting, and removing stains, and is suitable for a variety of surfaces and materials.

Portable and flexible: Some high-pressure water jet pumps can be designed to be portable, making them easy to move and use.

Safe and reliable: When operated correctly, the high-pressure water jet pump can provide high-pressure water flow safely and reliably, without worrying about safety hazards such as electrical fires.

Application

High Pressure Hydro Jet Pump is commonly used to clean pipes, drainage systems, building exteriors, vehicle surfaces, etc. It efficiently removes stubborn dirt faster and more effectively than traditional cleaning methods. Due to the characteristics of its high-pressure water flow, you need to pay attention to safety when using it to avoid causing harm to personnel and the surrounding environment.
