The high pressure chemical industries process pump is a key equipment used to transport various chemical liquids in the chemical production process. These pumps are often designed to handle high temperature, high pressure, corrosive or viscous liquids and therefore play an important role in the chemical industry.

Product details

3ZX60

Stroke Length (mm)：60

Crankcase Oil Capacity (L)：12.3

Pump Weight (KG)：320

Recommended SPM for Continuous Duty：≤430

Standard Gear Ratio：3.47

Optional Gear Ratio：2.65

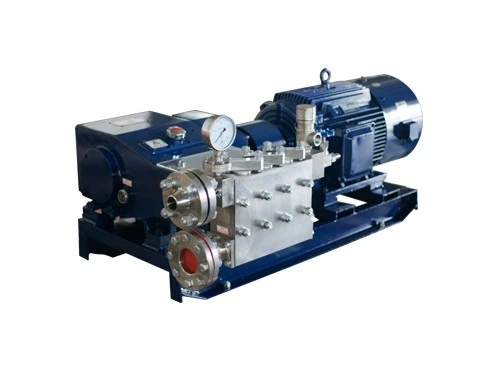

High Pressure Chemical Industries Process Pump

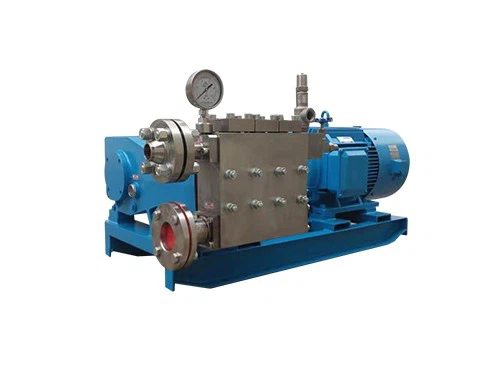

High Pressure Chemical Industries Process Pump 3ZX60

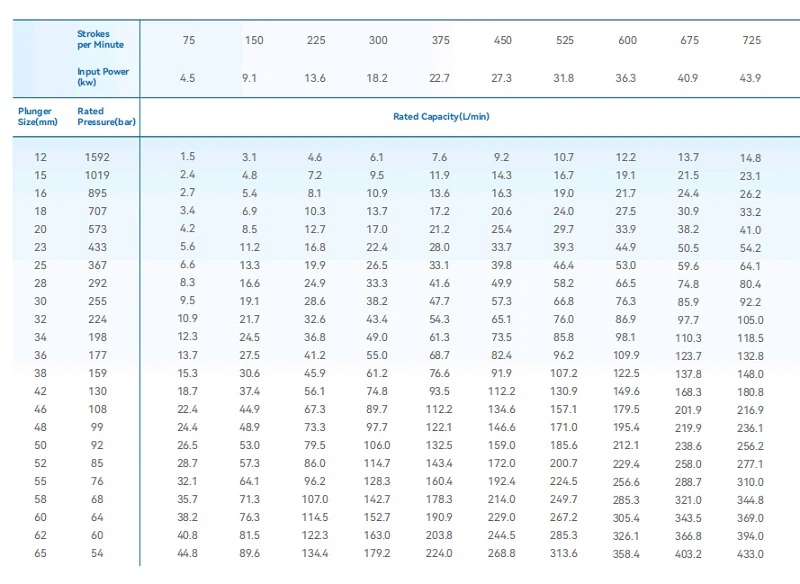

Product Parameters

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

3ZX60-Case 1
	Pump number: 20190833
	Pump type: 3ZX60
	Pressure (bar): 45
	Flow rate (L/min): 167
	Motor power (KW): 22
	Medium: fatty acid
	Medium temperature ℃: 70℃~80℃
	Valve accessories configuration: 1. Safety valve A22Y-63RL DN20 2. Pressure relief valve HY-JF2-00
3ZX60-Case 2
	Pump number: 20170234
	Pump type: 3ZX60
	Pressure (bar): 60
	Flow rate (L/min): 167
	Motor power (KW): 22
	Medium: water
	Medium temperature ℃: 50℃
	Valve accessories configuration: 1. Safety valve A21 Y-100P DN15

Feature

1. These pumps are usually made of corrosion-resistant materials such as stainless steel, nickel alloys or titanium alloys to ensure they can withstand the attack of chemicals. Its design also takes into account high temperature and high pressure environments to ensure pump stability and reliability.

2. High pressure chemical industries process pumps usually have high efficiency and precise flow control capabilities to ensure that the required liquid can be accurately delivered during the production process. They are also often equipped with advanced control systems to monitor and adjust the operating status of the pump to ensure stable operation under various working conditions.

3. These pumps usually have a compact design and take up less space, making them suitable for installation in limited spaces in chemical production facilities. They also generally have a long service life and lower maintenance requirements to reduce production costs and ensure stable operation of the production line.
