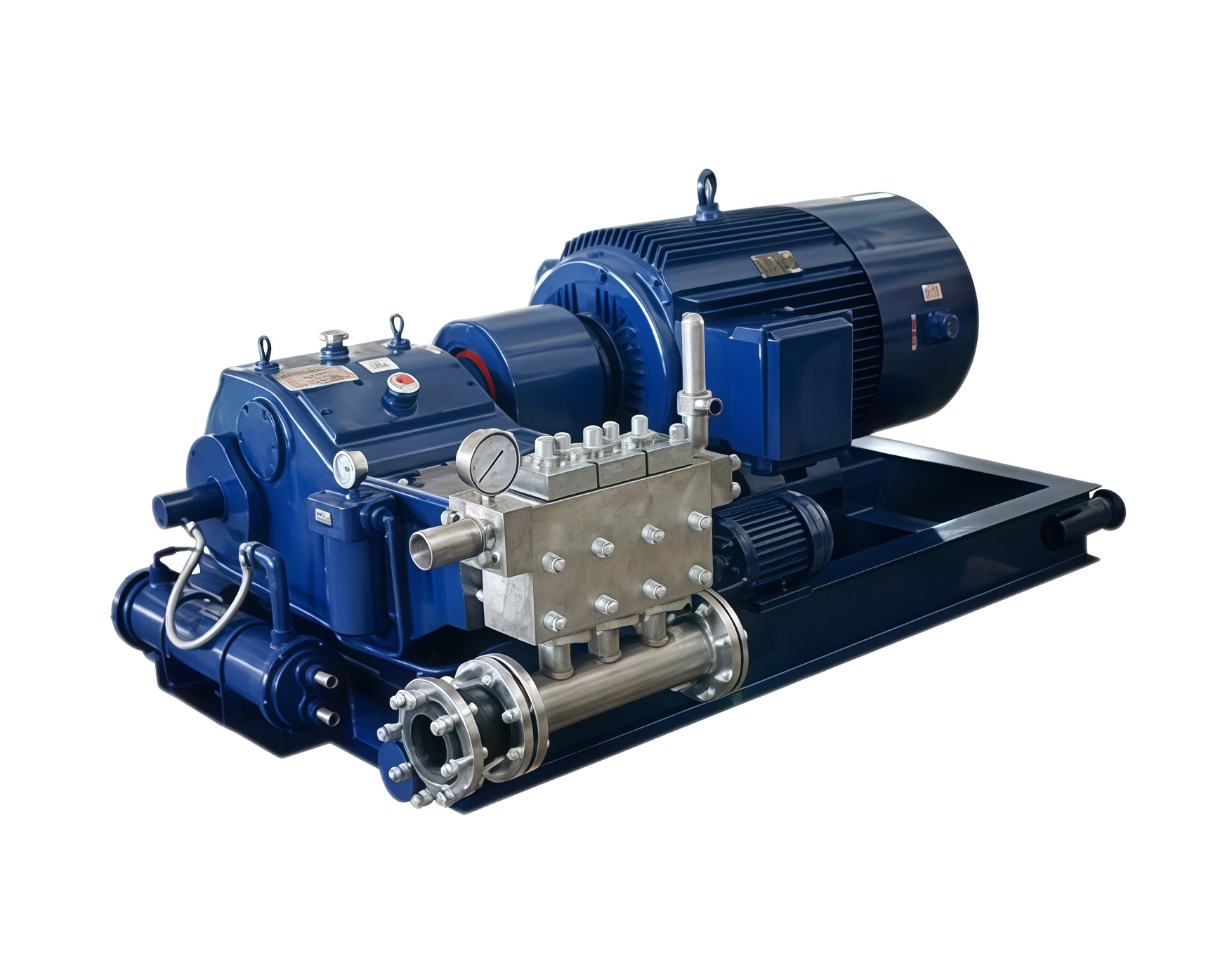

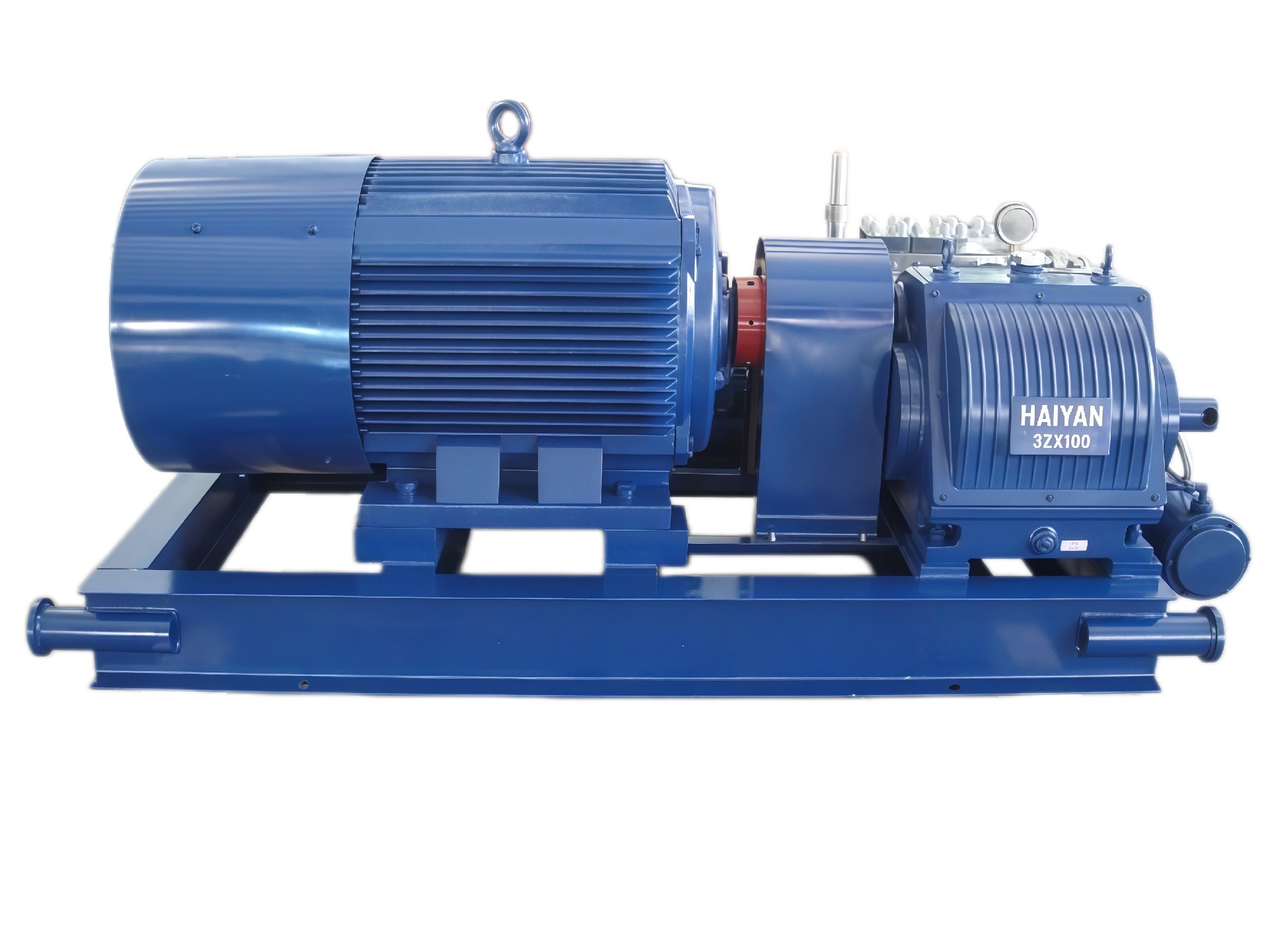

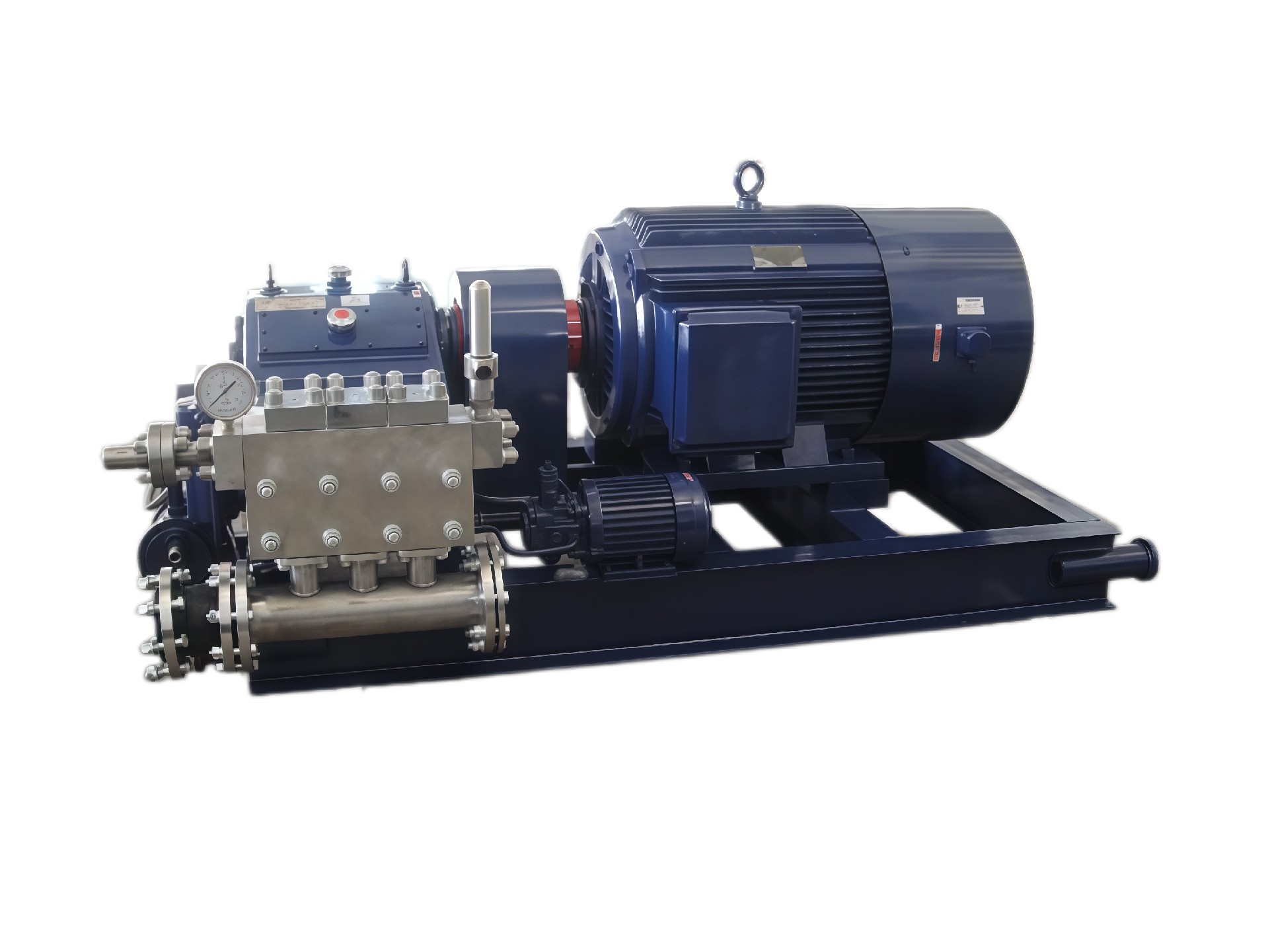

3ZX100 - High-Pressure Water Supply

◎ Pump Number: 20170325
◎ Pump Type: 3ZX100
◎ Pressure (bar): 180bar
◎ Flow (L/min): 250.5L/min
◎ Motor Power (KW): 110KW
◎ Medium: Clean Water

◎ Pump Accessories:
1. Safety Valve
2. Liquid-Filled Pressure Gauge
3. Discharge and Suction Pulsation Dampeners
4. Y-Shaped Filter
5. Lubricating Oil Cooling System with Oil Temperature Protection

◎ Application:
- The triplex plunger pump provides continuous, long-duration high-pressure water supply for civil engineering and construction projects.
