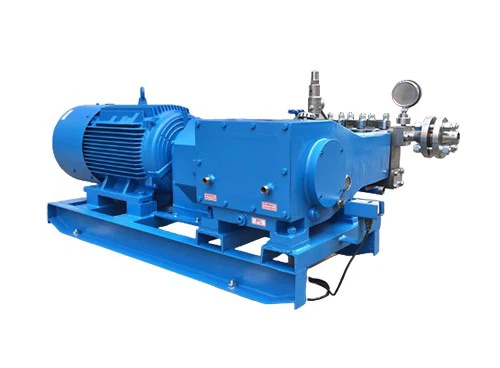

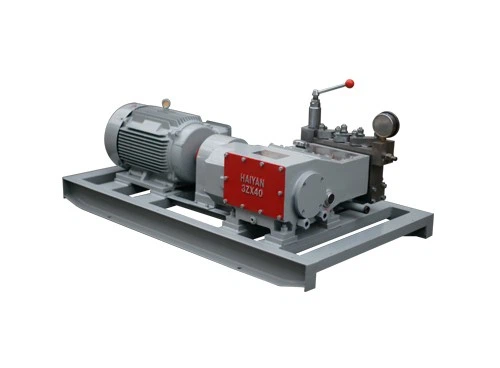

High Pressure Pump With Electric Motor

High Pressure Pump With Electric Motor, also known as an electric high-pressure pump, is a cleaning tool that combines a high pressure pump and an electric motor. It is commonly utilized in work environments that require high pressure water flow for cleaning, washing, flushing, and so on. It pressurizes the water through the motor, which drives the pump body and produces high-pressure water flow. It is widely employed in a variety of areas, including industry, agriculture, construction, automotive repair, and environmental cleanup.

Please visit our official website to view the complete range of parameters and specifications：https://www.hygyb.com/en/prolist/20

1. The motor, often an AC motor, powers the high-pressure pump and provides consistent power output.
2. The high-pressure pump body converts the motor's power into pressure and pressurizes the water flow using a plunger, piston, or centrifugal pump.
3. Pressure Regulation System: To ensure the pump's proper operation and extend its service life, an electric high-pressure pump is typically equipped with a pressure regulator, which may vary the pressure of the water flow to ensure cleaning effectiveness and safety.
4. Cooling system: High-pressure pumps, particularly high-power electric pumps, may require supplementary cooling systems to prevent overheating of the motor or pump body during prolonged operation.
5. Spray gun and nozzle: High-pressure pumps typically come with spray guns. Users can select different nozzles based on the requirements of the cleaning work to change the shape, flow rate, and pressure of the water flow.
6. Water source connection port: Electric high-pressure pumps require an external water source (e.g., a tank or municipal pipe) to bring water into the pump body via the input pipe.


1. Efficient cleaning: Electric high-pressure pumps can effectively remove tenacious dirt, grease, corrosion, and coatings.
2. Environmentally friendly and energy-efficient: Electric high-pressure pumps are more effective at cleaning and require less electricity. It cleans with simple water, eliminates the need for chemical cleaning agents, and contributes to environmental sustainability.
3. Easy operation: Electric high-pressure pumps are simple to use. You may swiftly start or stop the cleaning operation by managing the motor's start and stop, as well as modifying the pressure or water flow to meet various cleaning requirements.

4. Low noise and stability: Electric high-pressure pumps are quieter and more stable than fuel-powered pumps, making them ideal for usage in urban and industrial settings.
5. Easy maintenance: Electric high-pressure pumps require only routine checks of motors, pump bodies, seals, and nozzles.

1. Industrial use: used for high-pressure water jet cleaning, pressure testing, chemical injection, and other industrial applications.

2. Commercial use: such as high-pressure cleaning equipment, car washers, spraying equipment, etc.

1. Consider pressure and flow requirements while selecting a High Pressure Pump With Electric Motor for cleaning tasks. Water pressures and flows vary depending on the application.
2. Power requirements: Select a motor with sufficient power for the needed pressure and flow. The motor power determines the high-pressure pump's performance and cleaning efficiency.
3. Water supply conditions: Ensure the high-pressure pump has enough water volume and pressure. When a municipal water line is used, there is normally no difficulty; but, in some circumstances, additional water tanks may be required to maintain a reliable water source.
4. Durability and maintenance: When selecting a high-quality High Pressure Pump With Electric Motor, consider the durability of the pump body material and seals, particularly when working under high pressure. Wear and temperature resistance are crucial.


Use inlet filter (5-25 micron) to protect seals/plungers.
Change pump oil annually (triplex models).
Flush system with clean water after using chemicals.
Store in frost-free environment.

Factory Appearance

Storeroom

Storeroom

Storeroom

Test Center

Test Center

Hot Tags: High Pressure Pump With Electric Motor, China High Pressure Pump With Electric Motor manufacturers, suppliers, factory
